macor machinable ceramic sheet rod insulator block supplier

FOB Reference Price:Get Latest Price
$15.00 - $89.00 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
HB
Model Number:
HB-ACV
Application:
Industrial Ceramic
Material:
Alumina Ceramic
color:
white
Type:

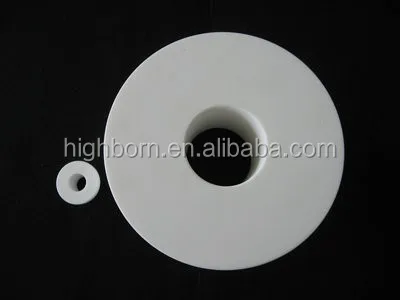

Machinable Glass Ceramic Macor disc
Density:
2.6g/cm3
Compressive Strength::
508 MPa
Temperature Range::
-200 C ~ 800 C
Thermal Conductivity::
1.71W/m.k
Name:
macor machinable ceramic sheet rod insulator block supplier
Vickers Hardness:
230
Compressive Strength:
345
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export package
Port
shanghai
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 20 To be negotiated

Macor machinable glass ceramic plates



Product Description



Machinable Ceramic Rod Dia25*150mm 3pcs



Machinable Ceramic

Machinable ceramics and glass ceramics is called processing performance, good vacuum performance, electrical insulating properties and high temperature resistance, excellent resistance to chemical corrosion. The glass ceramics glass ceramics with high mechanical strength, glass ceramics can be machined and the biological activity of micro crystal glass.

IMG_2541



 Machinable Glass Ceramic characteristics include:
               Zero porosity and non-shrinking
               High dielectric strength
               Electrical resistivity
               Withstands high temperatures up to 1000ºC
               Tight tolerance capability
               Easily and economically machined into complex shapes and precision parts


Machinable Glass Ceramic applications include:
               Machinable Glass Ceramic Feedthroughs
               Hermetic Seals
               Insulators and supports for Vacuum Environment feed-throughs
               Spacers, headers and windows for microwave tube devices
               Sample holders for microscopes
               Aerospace Components
               Welding Nozzles
               Fixtures
               Medical Equipment

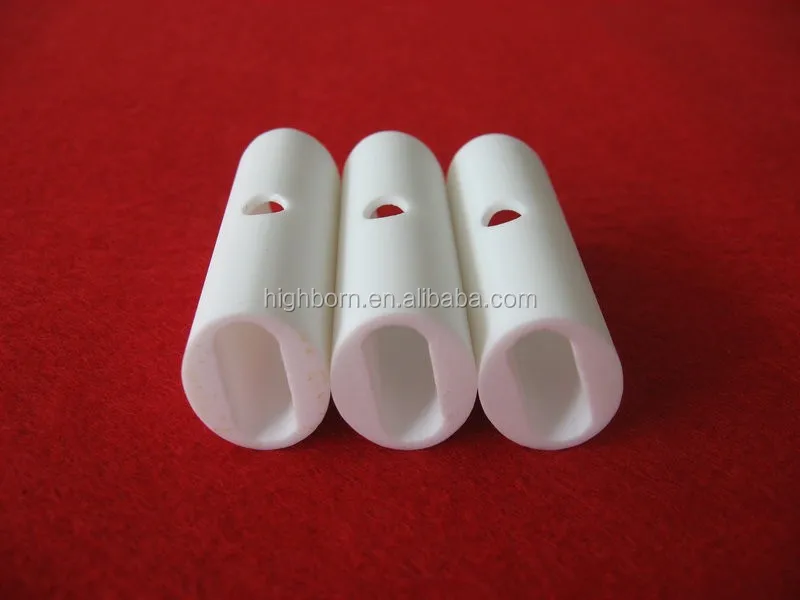

Machinable glass ceramic MGC /Macor rod/shaft

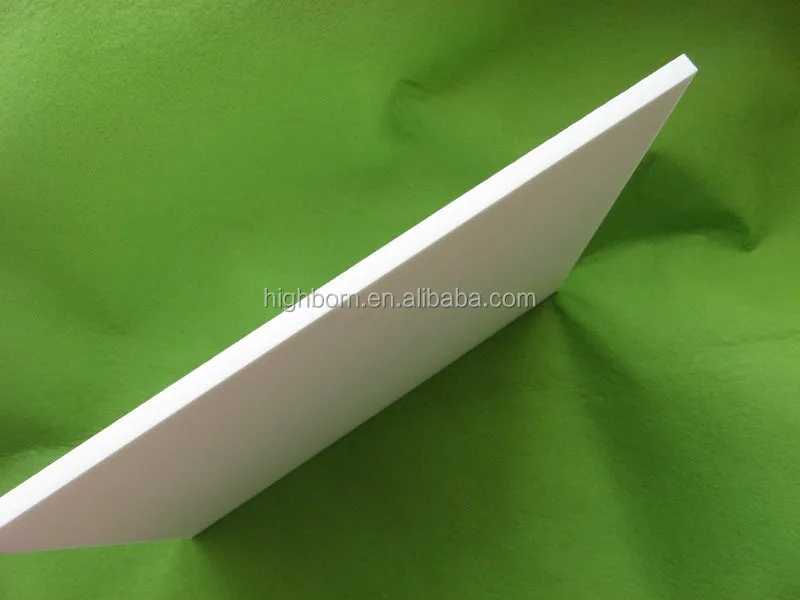

 Machinable Glass Ceramics Rod Bush.JPGMachinable Ceramic&Machinable Glass Ceramic  sheet.JPG



Item

Standard value

Remarks

Density

2.7g/m³



Porosity

0.096%



Water absorption

0.038



Hardness

4-5

Mohs

Color

pure white



Thermal expansion coefficient

86×10-7/°C

100°C ~600°C average value

Thermal conductivity

  1.68W/m.k

25°C

Working temperature

800°C



Bending Strength

108MPa



Compress strength

488 MPa



Impact Toughness

>2.56KJ/ m2



Modulus of elasticity

65GPa



Insertion loss

1~ 4×10-3

Room temperature

Dielectric constant

6-7

"

Dielectric strength

>40KV/mm

Thickness of sample 1mm

Bulk density

1.08×1014Ω.cm

25°C

1.5×1010

200°C

1.1×107

500°C

Gas efficiency at normal temperature

8.8×10-9 ml/s. cm2

Vacuum experienced for eight hours

Helium permeating rate

1×10-10ml/s

After 500C burning,cool to room temperature.

5%HC1

0.26mg/ cm2

95°C,24 hours

5%HF

83mg/ cm2

"

50%Na2CO3

0.012 mg/ cm2

"

5%NaOH

0.85mg/ cm2

"





Advantages

 1.It's easy to be machined to customer's design.

2.No porosity and outgassing. This makes machinable glass ceramic very often to be used in vacuum environment.



3. Excellent electrical insulation






Packaging & Shipping




Packaging Details: By cartons or wooden boxes or according to customer's requirements

Delivery Detail: Shipped in 7-30 days after payment



Our Services

We are specialized advanced technical ceramics manufacturer,who have founded 10 years.The quality and service of the products are guaranteed.



We provide customized parts according to user’s requirement.We produce and process non-standard components to satisfy the customer’s need.


Pre-sale service: Professional technical persons will choose suitable materials for you due to using environment about the ceramic parts.



Company Information

HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.


HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.

 IMG_2108_

We are specialized advanced technical ceramics manufacturer,who have founded 10 years. Export more than and 90 countries and regions. The quality and service of the products are guaranteed.



 Our materials including:

- Aluminium Oxide ( 95% 96% 99% 99.5% 99.7% Al2O3 )

- Zirconium Oxide ( Yttria stabilized ZrO2 )

- Silicon Nitride ( Gas pressure sintered & Hot pressed Si3N4 )

- Silicon Carbide (Reactive sintered,  Pressureless sintered & Recrystallization SiC)



- Aluminum Nitride

- Machinable Glass Ceramic
