Thermocouple protection refractory alumina ceramic tube

FOB Reference Price:Get Latest Price
$10.00 - $35.00 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 100 101 - 300 >300
Est. Time(days) 15 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
HB
Model Number:
HB
Type:
Ceramic Tubes
Application:
Industrial Ceramic
Material:
Alumina Ceramic
Feature:
High Temperature Resistance
Color:
Ivory
Size:
Size Customized
Shape:
Tongguan
Density:
3.89g/cm3
Usage:
Wear-resisting Material
Working temperature:
1600°C
Product name:
alumina ceramic tube
Name:
Thermocouple protection refractory alumina ceramic tube
Keyword1:
Thermocouple protection ceramic
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packing details
ceramic tube
Export packing, shock-rresistance carton, according to the product needs
Port
qingdao shanghai
Lead Time :
Quantity(Pieces) 1 - 100 101 - 300 >300
Est. Time(days) 15 40 To be negotiated
Product Description

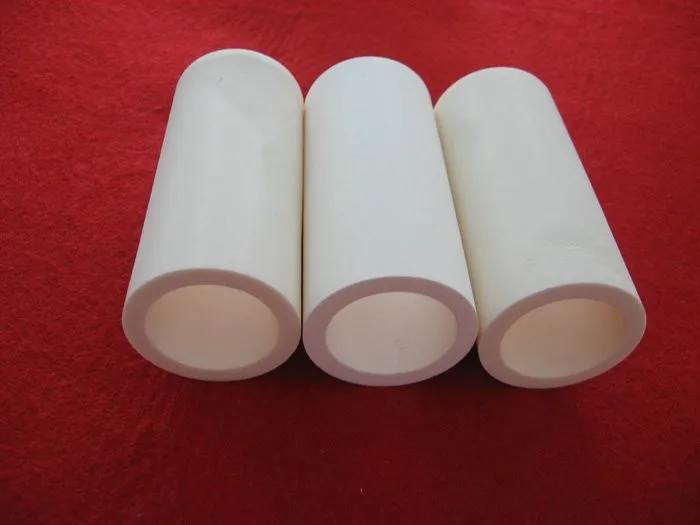

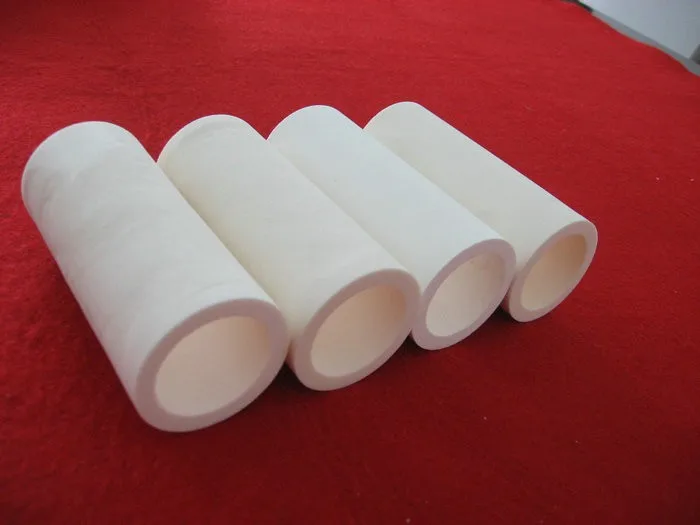

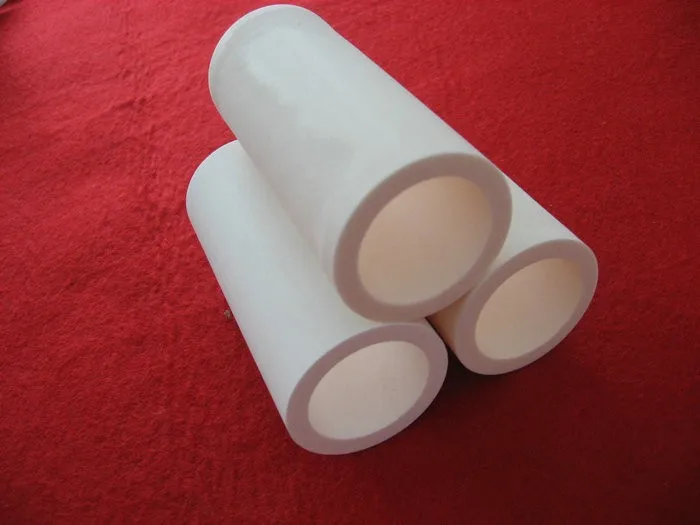

Thermocouple protection refractory alumina ceramic tube

Alumina tubes are mainly used in chemical industry,metallurgy,mining,building ceramics and other industries.Characterized by high temperature resistance,corrosion resistance,oxidation resistance,high insulation strength,good thermal shock resistance,no pollution.

Ceramic parts are used in a wide range of industries, due to their excellent mechanical, electrical, thermal and biochemical properties.

We offer many types of ceramic finished parts from porcelain, steatite, cordierite, zirconia, mullite and various percentages of alumina.

Main Technical Index
Product Name
99% dimidiate al2o3 ceramic protection tubing
IndexMain Technical Index
Unit
85 % Al2O3
95 % Al2O3
99 % Al2O3
99.5 % Al2O3
Density
g/cm3
3.3
3.65
3.8
3.9
Water Absorption
%
<0.1
<0.1
0
0
Sintered Temperature
1620
1650
1800
1800
Hardness
Mohs
7
9
9
9
Bending Strength(20℃))
Mpa
200
300
360
360
Compressive Strength
Kgf/cm2
10000
25000
30000
30000
Long Time Working Temperature
1350
1400
1600
1650
Max. Working Temperature
1450
1600
1800
1800
Volume Resistivity
20℃
Ω. cm3
>1013
>1013
>1013
>1013
100℃
1012-1013
1012-1013
1012-1013
1012-1013
300℃
>109
>1010
>1012
>1012
Packing & Delivery

Packing Details  : export carton  and wooden box

Delivery Details : Shipped in 15 days after payment

Certifications
Our Service
Our Company

HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China
HIGHBORN has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.
Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.
Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
